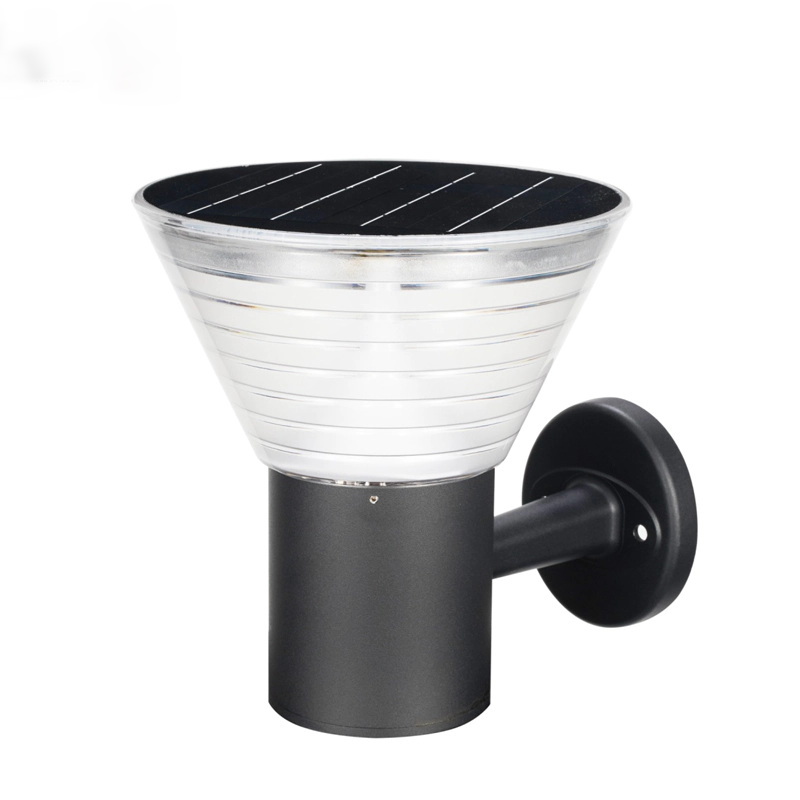

Cone Wall Light
Decorative wall-mounted style for courtyards.

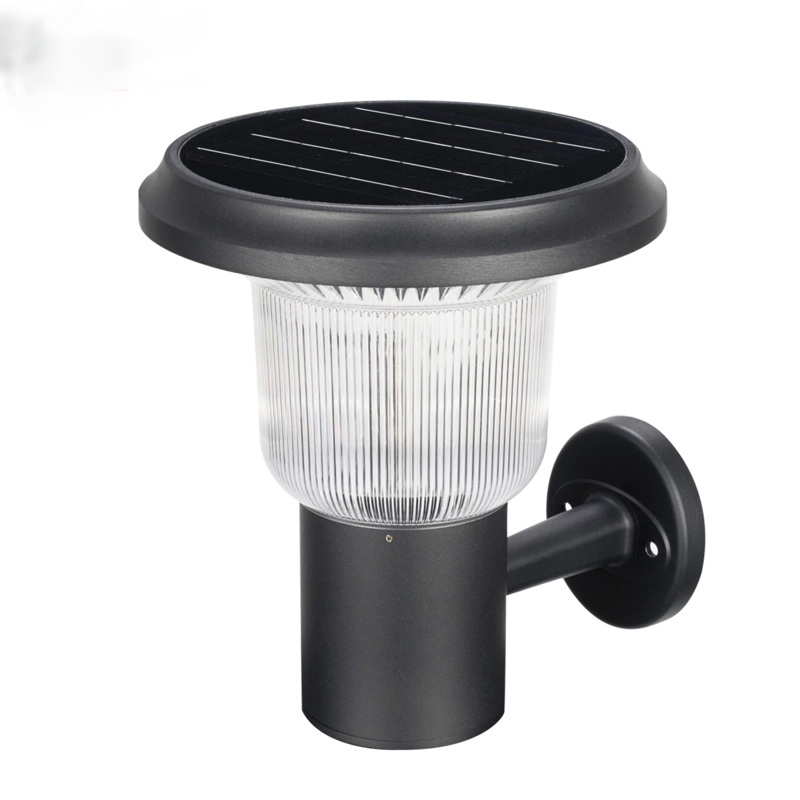

SOLAR WALL LIGHT
SOLAR WALL LIGHT
Wall-mounted solar lighting for entrances, fences and compact outdoor spaces.
A compact solar wall light range with integrated panels, PIR sensing options and decorative housings for residential and commercial walls.
- 3-15W
- Power range
- 300-1,800 lm
- Lumen range
- IP65
- Protection
- PIR optional
- Control option
Final battery, solar panel and lighting mode should be matched to local irradiation, application and backup-night requirement.
SYSTEM OVERVIEW
Engineered for dependable, low-maintenance outdoor illumination.
Wall-mounted solar lighting for entrances, fences, courtyards and compact outdoor spaces, with PIR motion and decorative housing options.
- 01
Solar charging
Panel size is selected around product type, working hours and local sunlight.
- 02
Battery reserve
LiFePO4 or lithium battery options support repeatable outdoor lighting programs.
- 03
Outdoor housing
IP-rated housing, optical diffuser and bracket structure are selected by application.
- 04
OEM/ODM support
Housing color, packaging, logo and control mode can be configured by project.
TECHNICAL DATA
Solar Wall Light configuration matrix.
Standard configurations are shown below. Final solar input, battery reserve and control profiles are engineered around installation and operating conditions.
| Parameter | 3W | 5W | 8W | 10W | 15W |
|---|---|---|---|---|---|
| System luminous flux | 300 lm | 600 lm | 900 lm | 1,200 lm | 1,800 lm |
| Solar panel | 1.8W | 3W | 5W | 8W | 12W |
| Battery | 3.7V 2Ah | 3.7V 4Ah | 3.7V 6Ah | 3.2V 6Ah | 3.2V 10Ah |
| Mounting height | 2-3 m | 2-3 m | 2.5-3.5 m | 3-4 m | 3-4 m |
ProtectionIP65 outdoor protection
ControlLight sensor, PIR and three modes
PanelIntegrated or separate-panel styles
HousingAluminum or PC by model
UseEntrances, fences, balconies, courtyards
OEMHousing color, logo and packaging configurable
STYLE & APPLICATION VIEWS
A versatile design portfolio for diverse environments.
Multiple housings, mounting options and finishes support coordinated architectural and landscape applications.

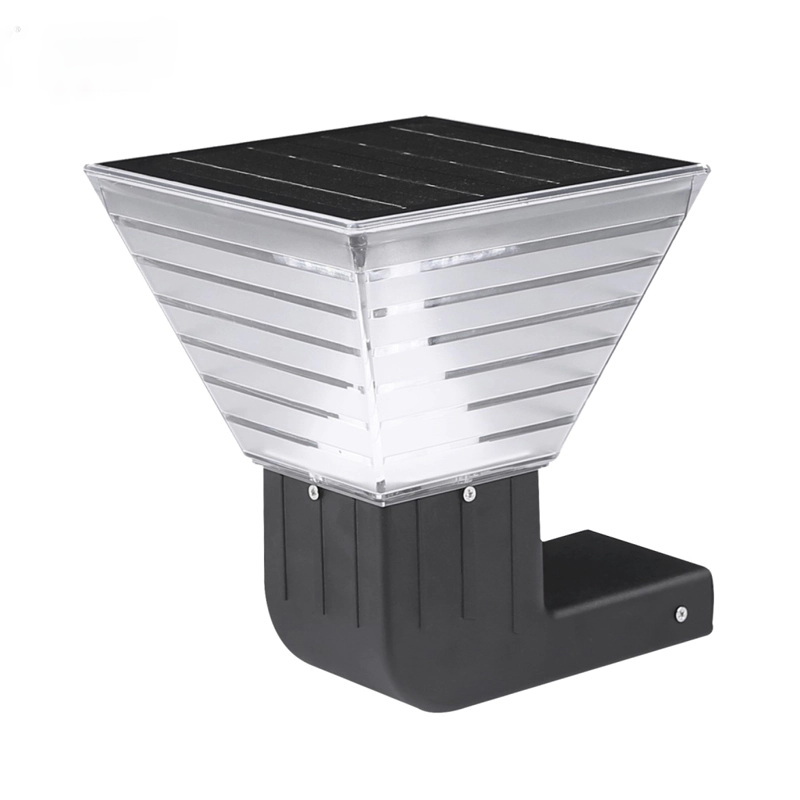

Square Wall Light
Stronger architectural line for modern walls.

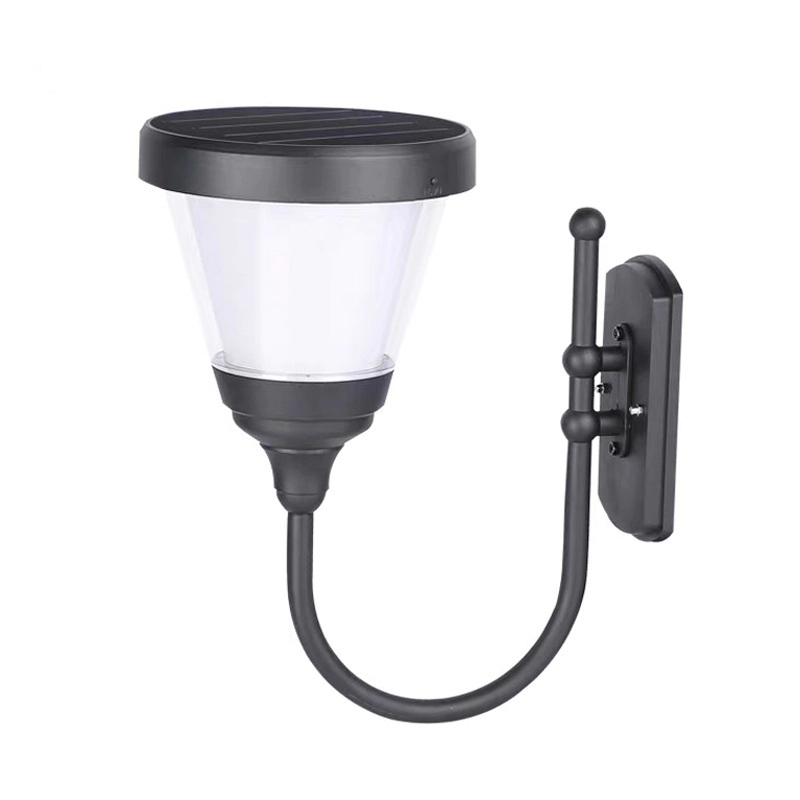

Hook Style
Classic outdoor look for garden and balcony scenes.

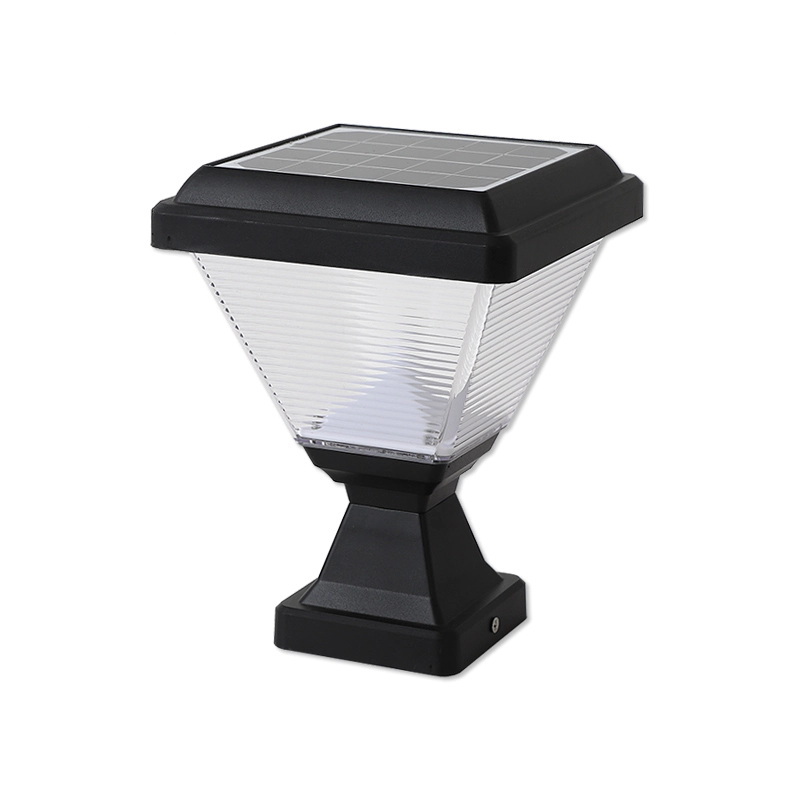

Pillar Light
Compact pillar or fence-top lighting style.

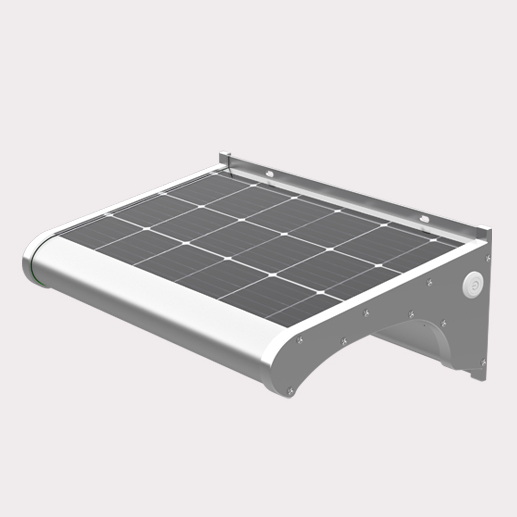

Panel Bracket
Separate-panel bracket option for better charging exposure.
APPLICATIONS
Purpose-built for real outdoor environments.
Match each product with the right application, installation context and lighting objective.
Entrances
Welcoming lighting for doors and gates.
Courtyards
Compact wall lighting for outdoor living areas.
Fences
Solar lighting where pole installation is not practical.
Balconies
Small-space lighting for apartments and villas.
Doorways
Motion-sensing lighting for daily access.
Small security areas
PIR modes for compact perimeter lighting.
TECHNICAL RESOURCES
Core product data for confident specification.
Access the standard datasheet or request a project-specific technical package.
PROJECT ENGINEERING
Project-specific configuration starts with site conditions.
Location, application, operating hours, lighting targets and quantity establish the engineering baseline.
PROJECT INPUTS
- Installation country and application
- Target wattage or brightness
- Working hours and backup nights
- Quantity, logo and packaging needs
