Fast integrated installation
Light engine, battery, controller and solar charging are built into one compact pole-mounted assembly.
RLS-AIO SERIES
ALL-IN-ONE SOLAR STREET LIGHT
Integrated intelligence. Faster deployment.
A compact solar street lighting platform integrating the LED engine, LiFePO4 storage, controller and monocrystalline solar module into one clean assembly for standard road, park and distributor projects.
- 40W-120W
- Standard range
- 150W
- Project option
- 170 lm/W
- System efficacy
- IP66 / IK10
- Protection
Final battery reserve, control profile and mounting height should be selected against local irradiation and lighting target.
SYSTEM OVERVIEW
The simplest architecture for repeatable solar street lighting.
The integrated platform combines a clean appearance, low wiring complexity and consistent performance for repeatable installation environments.
- 01
Integrated solar body
Solar module, LED optics, controller and battery are combined into a single lighting assembly.
- 02
LiFePO4 storage
Battery capacity is scaled by model to support standard dusk-to-dawn operating profiles.
- 03
Adaptive control
Time dimming, PIR sensing and remote programming help extend backup duration.
- 04
Clean pole interface
Reduced external wiring helps create a neat appearance for public and commercial spaces.
WHY THIS ARCHITECTURE
Built for speed, simplicity and visual order.
Compared with split systems, all-in-one models trade some sizing flexibility for faster installation and a cleaner product story.
Clean visual profile
No separate battery box or long external wiring, making it suitable for parks, communities and distributor programs.
Lower field complexity
A simplified structure reduces installation steps and supports consistent deployment across standard projects.
Project-ready control
Dimming, PIR sensing and remote programming help balance brightness, battery reserve and user experience.
TECHNICAL DATA
Integrated models for standard project selection.
Use the matrix as the starting point. Backup duration depends on dimming profile, solar irradiation and battery state of charge.
| Parameter | 40W | 60W | 80W | 100W | 120W | 150W* |
|---|---|---|---|---|---|---|
| Actual LED input | 40W | 60W | 80W | 100W | 120W | 150W |
| System luminous flux | 6,800 lm | 10,200 lm | 13,600 lm | 17,000 lm | 20,400 lm | 25,500 lm |
| System efficacy | 170 lm/W | 170 lm/W | 170 lm/W | 170 lm/W | 170 lm/W | 170 lm/W |
| LiFePO4 battery | 12.8V 36Ah | 12.8V 54Ah | 12.8V 66Ah | 12.8V 84Ah | 12.8V 90Ah | 12.8V 100Ah |
| Mono solar module | 18V 80W | 18V 100W | 18V 130W | 18V 160W | 18V 180W | 18V 200W |
| Product envelope | 960x390x140mm | 1200x390x140mm | 1550x390x140mm | 1900x390x140mm | 2100x390x140mm | 2350x430x140mm |
| Mounting height | 4-6 m | 5-8 m | 6-9 m | 7-10 m | 8-11 m | 9-12 m |
| Backup duration | 2-3 adaptive nights | 2-3 adaptive nights | 2-3 adaptive nights | 2-3 adaptive nights | 2-3 adaptive nights | Project review |
150W is a high-output project option. Confirm housing size, weight, wind exposure and solar autonomy before final selection.
HousingDie-cast aluminum + PMMA optical lens
ProtectionIP66 / IK10
CCT / CRI2700K-6500K; CRI >= 70, CRI >= 80 optional
OpticsType II-M or Type III-M road distribution
ControlDusk-to-dawn, time dimming, PIR sensing and handheld remote programming
Warranty3 years standard; 5-year project option
STYLE & APPLICATION VIEWS
A versatile integrated platform for modern outdoor environments.
Integrated body proportions, pole-mounting options and application views demonstrate the versatility of the series.
Integrated Pole Head
Solar panel and LED module combined into one compact pole-top body.

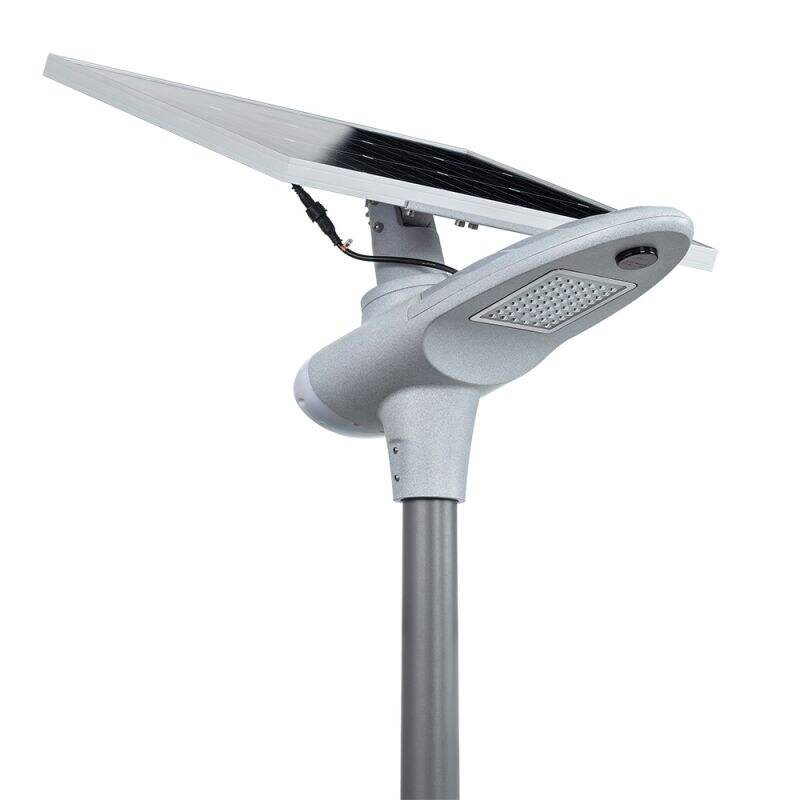

Side Profile
Slim silhouette for projects that prioritize simple installation and clean appearance.

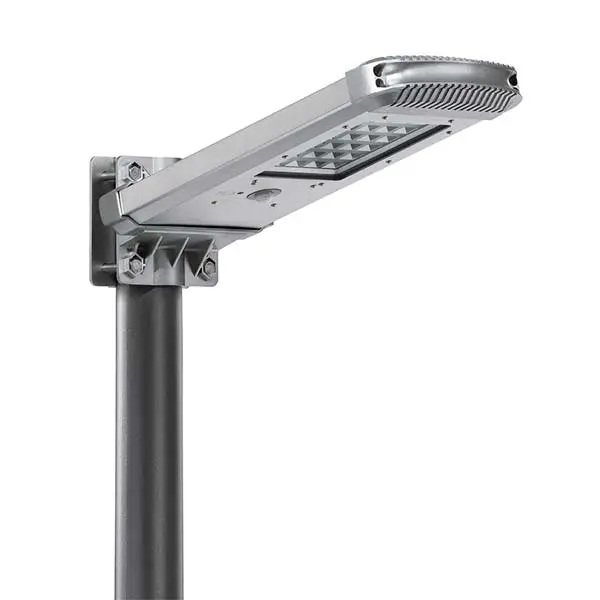

Pole-Mounted Road Style
Direct mounting interface for roads, internal driveways and small public areas.

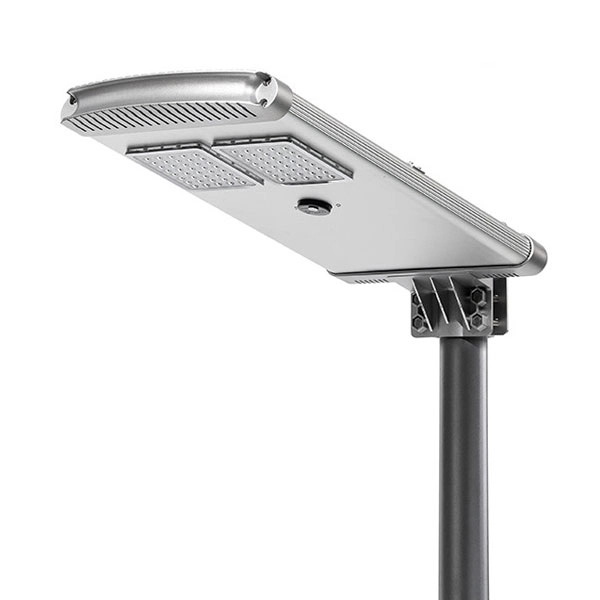

Urban Head Option
Rounded housing style for communities, campuses and park-side applications.

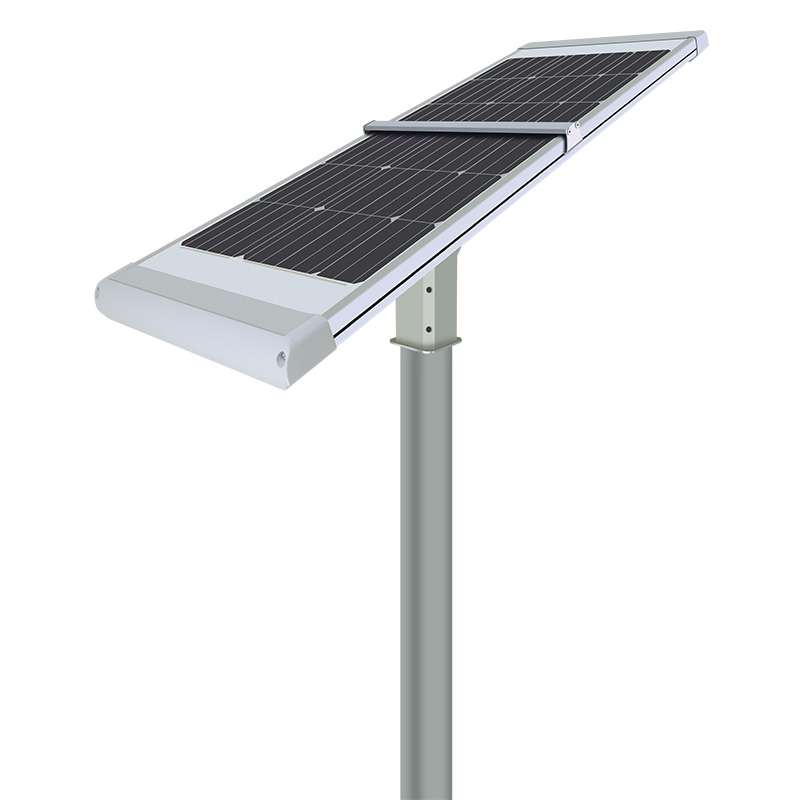

Slim Panel Layout
Long integrated panel shape for stronger daytime charging within a single body.

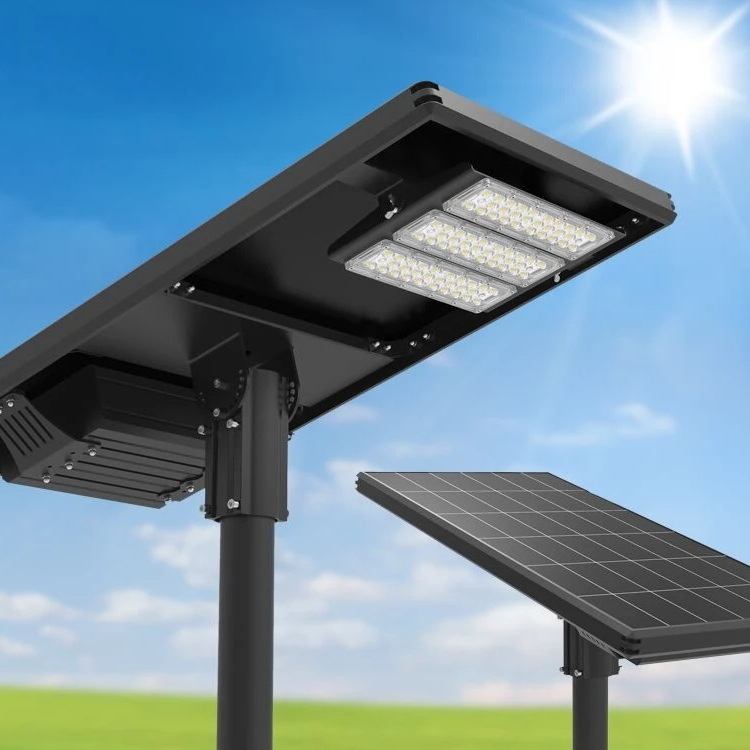

Installed Site View
Application view showing how integrated lights read on real poles and roads.
Integrated system design
A unified luminaire, battery, controller and solar module streamline installation and long-term operation.

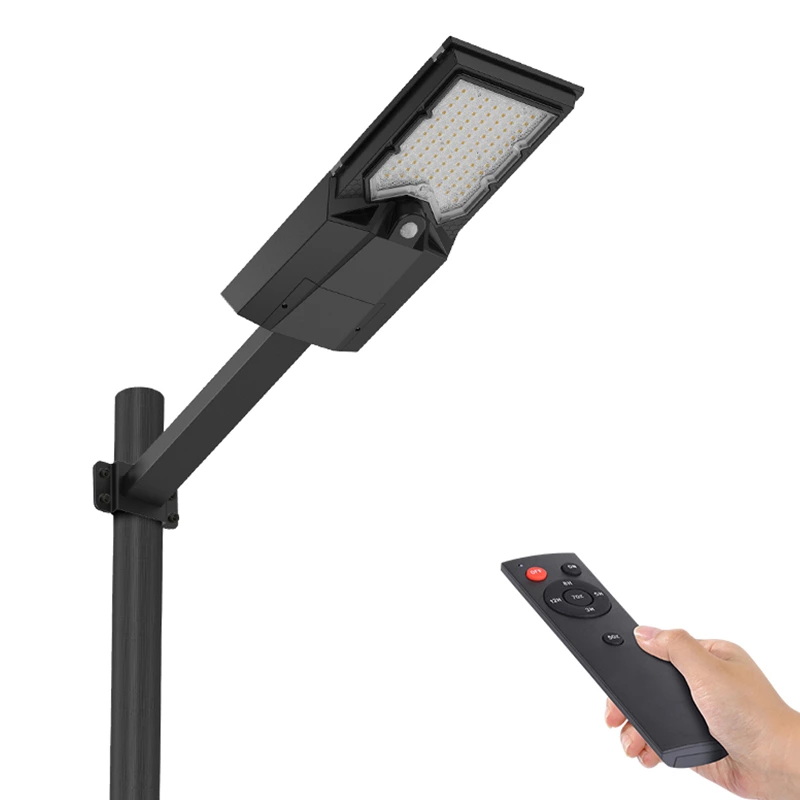

Configurable operation
Dimming, motion sensing and remote control help tune brightness and autonomy.
APPLICATIONS
Best for clean, repeatable outdoor lighting programs.
All-in-one models are ideal for sites with suitable solar access, fast installation schedules and a preference for clean pole architecture.
Community roads
Compact solar lighting for residential streets and neighborhood roads.
Parks & pathways
Clean pole-mounted design for public landscape and pedestrian areas.
Schools & campuses
Fast-deploy lighting for internal roads, access lanes and walkways.
Parking lots
Integrated lighting for open commercial areas with simpler installation.
Distributor stock
A practical product family for repeatable market programs and private label.
OEM projects
Housing color, branding, control settings and packaging can be aligned by project.
TECHNICAL RESOURCES
Technical data for confident system specification.
Access the standard datasheet or request a configuration package aligned with the project conditions.
CONFIGURE A PROJECT
Send the application. We will match the model.
Share country, application, pole height, expected brightness, quantity and backup-night requirement.
BEST BRIEF INCLUDES
- Application and installation country
- Road width, pole height and spacing
- Target wattage or illuminance
- Backup-night requirement and order quantity
