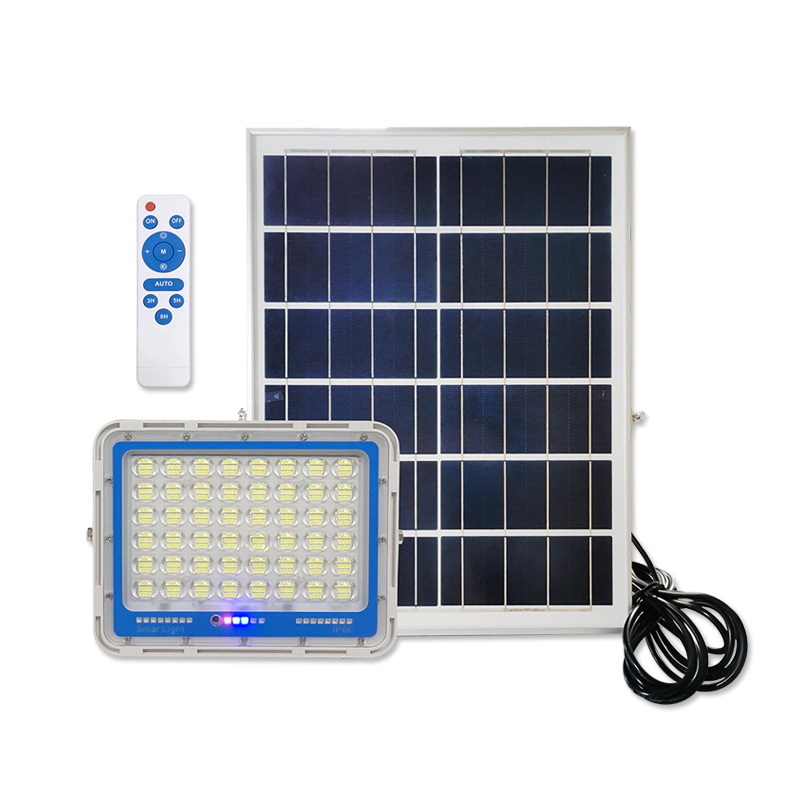

Blue Frame Kit
Compact kit for distributor and retail programs.

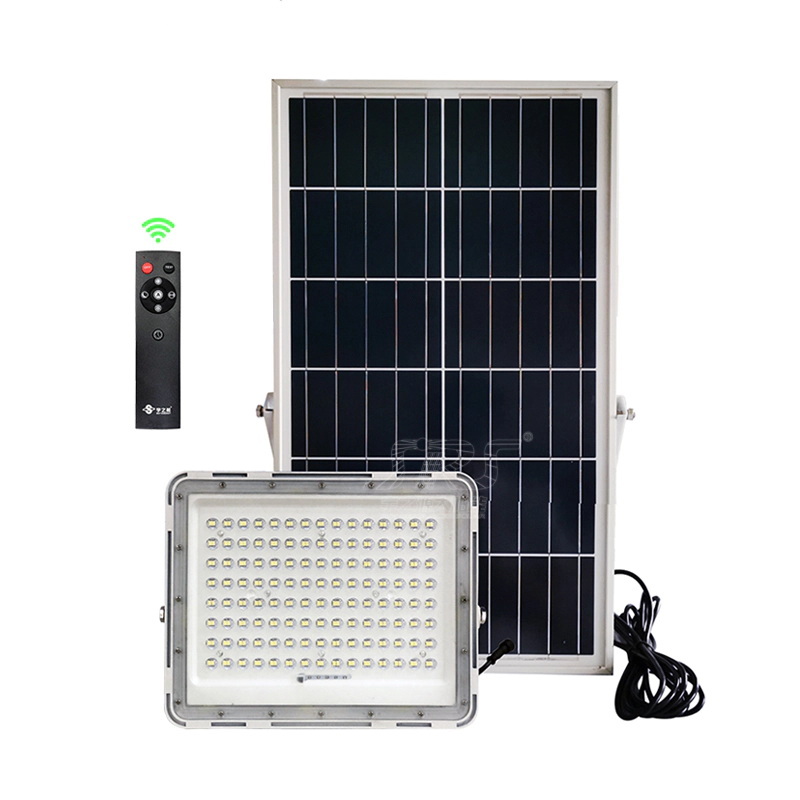

SOLAR FLOOD LIGHT
SOLAR FLOOD LIGHT
High-output solar lighting for security and commercial outdoor areas.
A flexible solar flood light platform with independent PV, LiFePO4 battery options, remote control and adjustable brackets for wide-area lighting.
- 30-200W
- Power range
- 4,800-32,000 lm
- Lumen range
- IP65 / IP66
- Protection
- Remote / PIR
- Control options
Final battery, solar panel and lighting mode should be matched to local irradiation, application and backup-night requirement.
SYSTEM OVERVIEW
Engineered for dependable, low-maintenance outdoor illumination.
Solar flood lighting for security, yards, farms, warehouses and commercial outdoor areas, with adjustable solar panels and remote/PIR control options.
- 01
Solar charging
Panel size is selected around product type, working hours and local sunlight.
- 02
Battery reserve
LiFePO4 or lithium battery options support repeatable outdoor lighting programs.
- 03
Outdoor housing
IP-rated housing, optical diffuser and bracket structure are selected by application.
- 04
OEM/ODM support
Housing color, packaging, logo and control mode can be configured by project.
TECHNICAL DATA
Solar Flood Light configuration matrix.
Standard configurations are shown below. Final solar input, battery reserve and control profiles are engineered around installation and operating conditions.
| Parameter | 30W | 50W | 100W | 150W | 200W |
|---|---|---|---|---|---|
| System luminous flux | 4,800 lm | 8,000 lm | 16,000 lm | 24,000 lm | 32,000 lm |
| Solar panel | 6V 12W | 6V 18W | 6V 30W | 18V 60W | 18V 100W |
| LiFePO4 battery | 3.2V 10Ah | 3.2V 15Ah | 3.2V 25Ah | 12.8V 24Ah | 12.8V 40Ah |
| Recommended use | Entrance | Yard | Warehouse | Parking | Security area |
CCT4000K / 5000K / 6500K
ControlRemote, PIR and time dimming options
HousingAluminum or ABS by model
ProtectionIP65 standard, IP66 project option
BracketAdjustable wall or pole bracket
OEMLogo, packaging and control mode configurable
STYLE & APPLICATION VIEWS
A versatile design portfolio for diverse environments.
Multiple housings, mounting options and finishes support coordinated architectural and landscape applications.

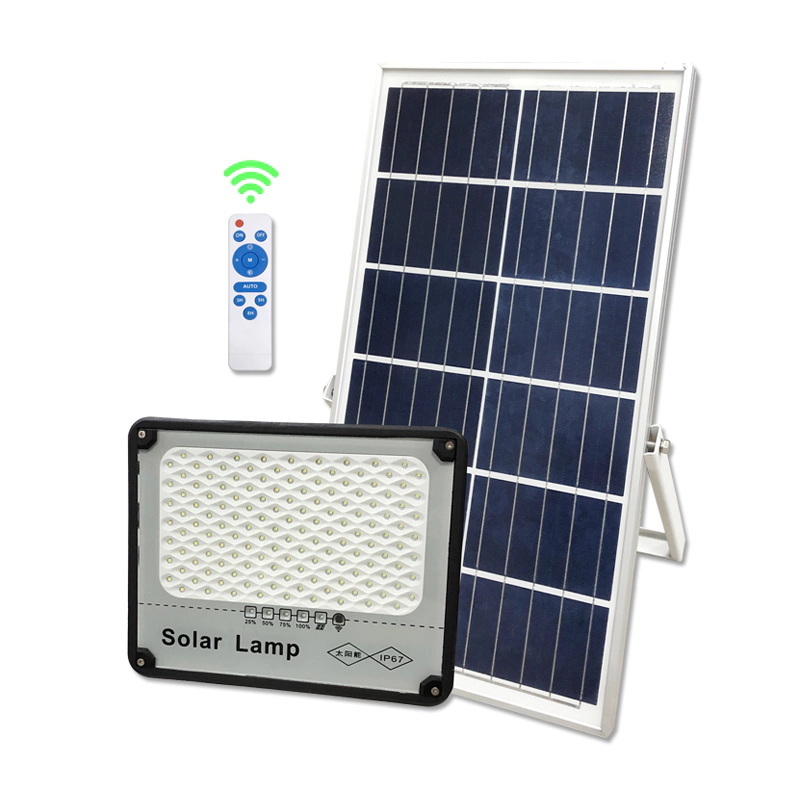

Adjustable Panel
Independent PV orientation for better solar exposure.

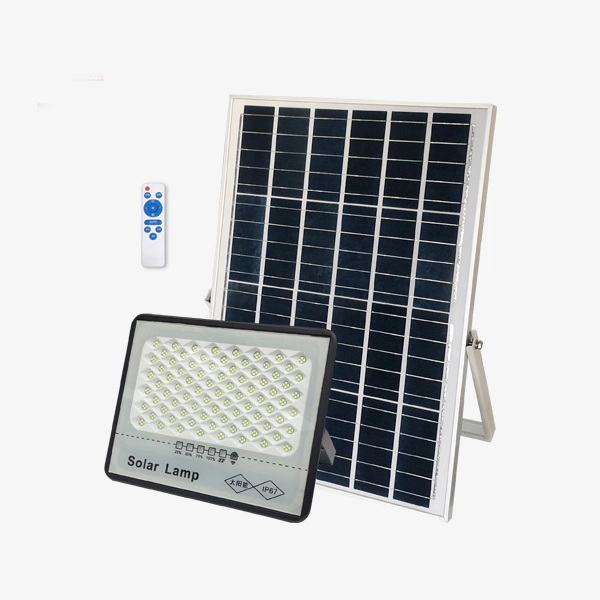

Commercial Kit
Larger panel and lamp set for outdoor work areas.

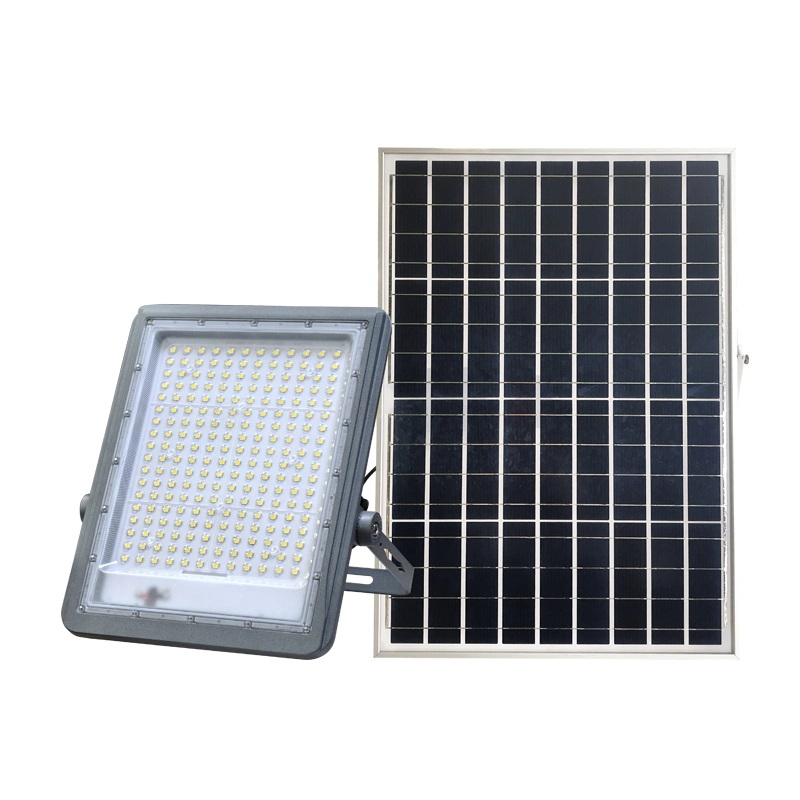

Slim Panel
Clean panel layout for wall and yard installations.

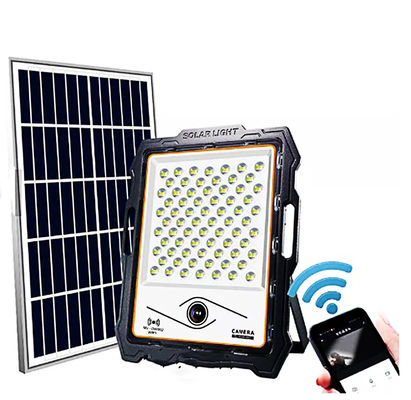

Remote Control
Remote and sensor options for practical field operation.
APPLICATIONS
Purpose-built for real outdoor environments.
Match each product with the right application, installation context and lighting objective.
Warehouses
Outdoor work-area lighting without grid wiring.
Parking areas
Solar lighting for open lots and access zones.
Farms
Off-grid illumination for yards and service areas.
Billboards
Adjustable flood lighting for signage.
Security lighting
PIR and remote modes for perimeter visibility.
Outdoor yards
Wide-area lighting for commercial spaces.
TECHNICAL RESOURCES
Core product data for confident specification.
Access the standard datasheet or request a project-specific technical package.
PROJECT ENGINEERING
Project-specific configuration starts with site conditions.
Location, application, operating hours, lighting targets and quantity establish the engineering baseline.
PROJECT INPUTS
- Installation country and application
- Target wattage or brightness
- Working hours and backup nights
- Quantity, logo and packaging needs
