Independent solar orientation
The PV module can face the best solar direction instead of being locked to the luminaire angle.
RLS-AT SERIES
ALL-IN-TWO SOLAR STREET LIGHT
More solar collection, fewer field modules.
RLS-AT is a semi-integrated all-in-two platform: LED, A-grade LiFePO4 battery and MPPT controller are housed in the light head, while the independent monocrystalline PV module can be tilted toward the best solar direction.
- 30W-120W
- Standard range
- 150W
- Project option
- 170 lm/W
- System efficacy
- IP66
- Luminaire protection
Final PV module, battery capacity and dimming profile are selected against project irradiation, pole spacing and backup requirements.
SYSTEM OVERVIEW
The semi-integrated architecture for solar street lighting.
The semi-integrated architecture combines independent solar-module orientation with a clean two-module installation and simplified field service.
- 01
Integrated light head
LED engine, A-grade LiFePO4 battery and MPPT controller are housed together for a compact pole-top assembly.
- 02
Independent PV module
The panel can be tilted and oriented for better solar exposure across different markets.
- 03
Waterproof cable connection
A single outdoor cable keeps the installation visually clean and easier to inspect.
- 04
Adaptive control logic
Default 3h 100% + 2h 80% + 7h 25% dimming can be customized for backup-night targets.
WHY THIS ARCHITECTURE
Designed for stronger charging without a heavy split system.
The series balances compact construction with stronger solar-orientation flexibility for road, community and commercial-area projects.
Cleaner than full split systems
Battery and controller stay inside the light head, reducing external boxes and site wiring.
Stronger energy budget
Larger independent panels support better recovery than compact all-in-one products.
Serviceable project platform
The light head, PV module and control settings can be inspected and specified independently.
Semi-integrated search fit
The same architecture is also specified as semi-integrated solar street lighting in many tenders.
TECHNICAL DATA
Engineered configurations across multiple power levels.
Use the matrix as the starting point. Photometric target, PV size, battery reserve and control mode should be confirmed against the project location.
| Parameter | 30W | 40W | 60W | 80W | 100W | 120W |
|---|---|---|---|---|---|---|
| Actual LED input | 30W | 40W | 60W | 80W | 100W | 120W |
| System luminous flux | 5,100 lm | 6,800 lm | 10,200 lm | 13,600 lm | 17,000 lm | 20,400 lm |
| System efficacy | 170 lm/W | 170 lm/W | 170 lm/W | 170 lm/W | 170 lm/W | 170 lm/W |
| LiFePO4 battery | 12.8V 30Ah | 12.8V 42Ah | 12.8V 54Ah | 12.8V 72Ah | 12.8V 90Ah | 12.8V 100Ah |
| Mono solar module | 18V 60W | 18V 80W | 18V 100W | 18V 130W | 18V 160W | 18V 200W |
| Light head envelope | 575x280x100mm | 575x280x100mm | 665x280x100mm | 750x280x100mm | 845x280x100mm | 980x340x130mm |
| Mounting height | 4-6 m | 4-6 m | 5-7 m | 6-8 m | 7-10 m | 8-12 m |
| PV tilt range | 0-60 deg | 0-60 deg | 0-60 deg | 0-60 deg | 0-60 deg | 0-60 deg |
| Backup duration | 3-5 adaptive nights | 3-5 adaptive nights | 3-5 adaptive nights | 3-5 adaptive nights | 3-5 adaptive nights | 3-5 adaptive nights |
150W project option: 25,500 lm, 25.6V 60Ah LiFePO4 battery and 36V 300W mono PV. Confirm product weight, wind load, panel bracket and pole structure before selection.
ProtectionLuminaire IP66; IK08 standard, IK10 project option
OpticsType II-M / Type III-M road distribution
ControlMPPT, 3h 100% + 2h 80% + 7h 25% default mode, PIR or microwave optional
Color temperature2700K-6500K, CRI >= 70, CRI >= 80 optional
PV connectionOutdoor waterproof cable, project length configurable
150W option25,500 lm, 25.6V 60Ah battery and 36V 300W mono PV for project review
Warranty3 years standard; 5-year project option
Working temperature-25 deg C to 65 deg C
POLE & STYLE OPTIONS
One electrical platform, more visible installation choices.
Use these as configuration references. Final pole height, arm length, foundation and wind-load design should be confirmed by project.

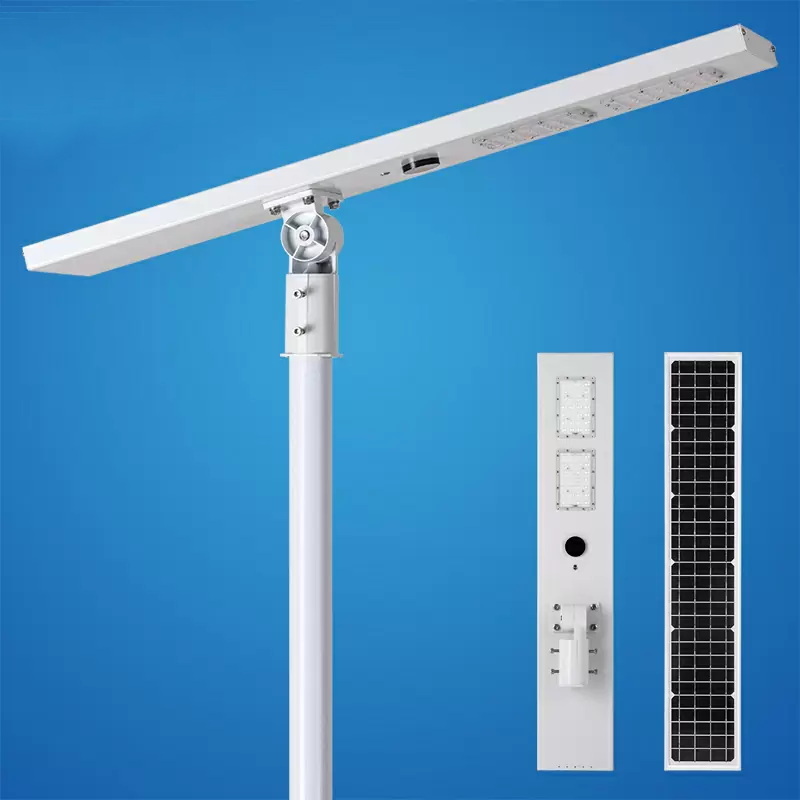

Straight Arm Road Pole
Clean single-arm layout for village roads, campuses and industrial access streets.

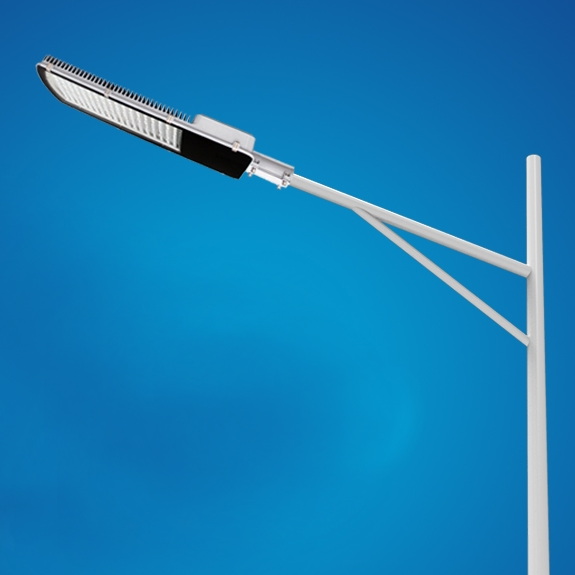

Curved Arm Urban Pole
Softer visual line for community streets, parks and commercial outdoor areas.

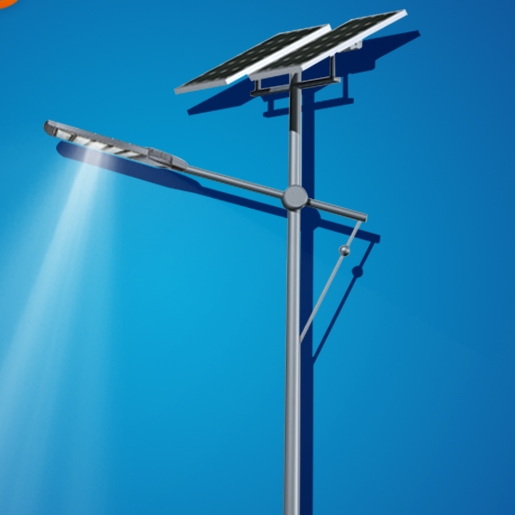

Double Arm Road Layout
Two-way road or center-island installation where balanced illumination is required.

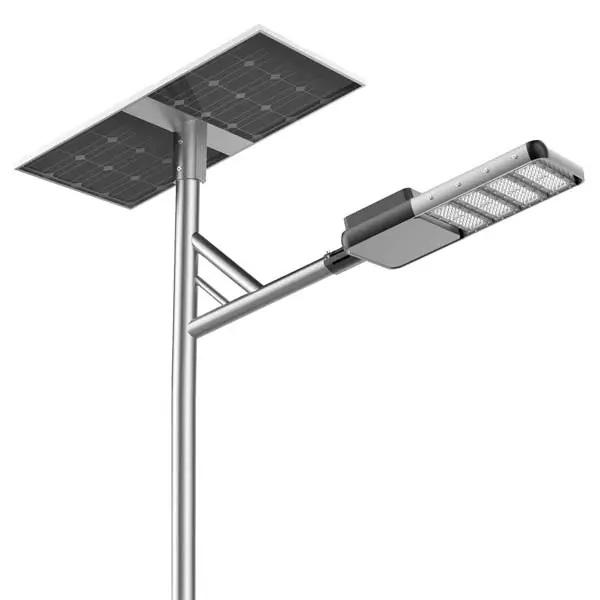

Top Panel Bracket
Compact PV-over-pole structure for open sites and straightforward solar orientation.

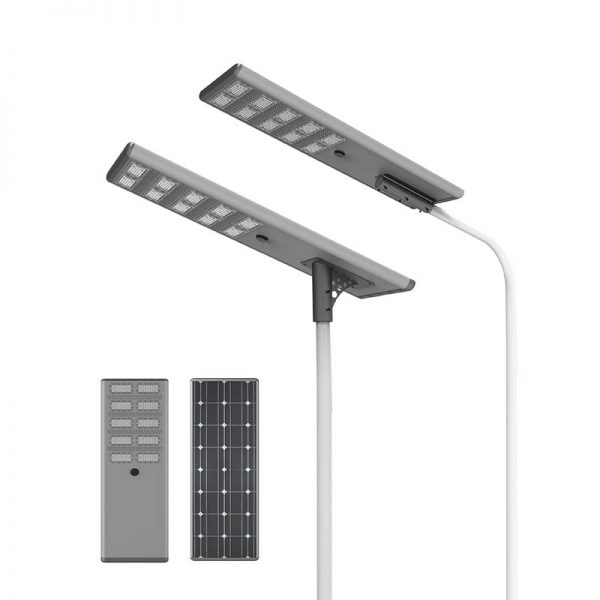

Family Lineup
Multiple housing lengths and bracket combinations can be aligned by wattage.

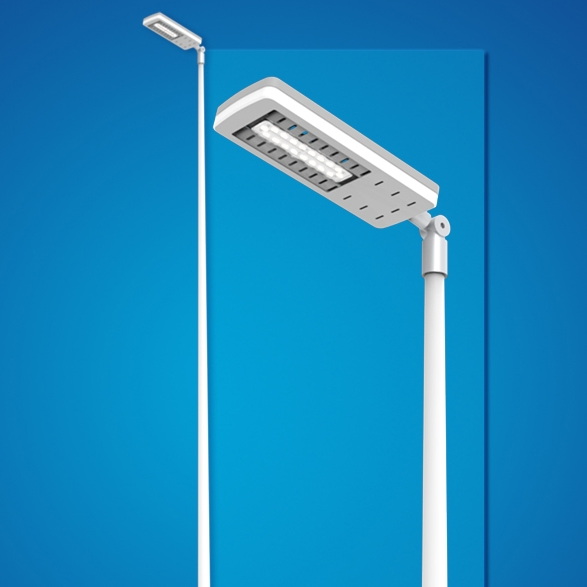

Pole-Top Closeup
A tidy semi-integrated light head with pole interface and independent panel routing.
Better panel positioning
Orient the independent PV module around local sunlight, not only around the road arm direction.
Cleaner two-module build
Keep storage and control inside the light head while maintaining a separately adjustable panel.
APPLICATIONS
Useful where charging angle and tidy installation both matter.
All-in-two is a strong choice for mid-power road, area and distributor projects that need a practical balance of performance and installation simplicity.
Village roads
Efficient lighting for township roads and rural access routes.
Parks & campuses
Clean two-module installation for public areas, schools and green spaces.
Parking areas
Adaptive solar lighting for commercial lots and internal roads.
Perimeter lighting
Flexible solar collection for boundaries, compounds and service areas.
Distributor programs
A practical middle-tier product between compact and municipal systems.
OEM projects
Housing color, branding, packaging and control profiles can be aligned by project.
TECHNICAL RESOURCES
System data for accurate project configuration.
Access the standard datasheet or request photometric, installation and configuration documentation.
CONFIGURE A PROJECT
Send the road conditions. We will size the starting point.
Share location, pole height, road width, pole spacing, target lighting level, quantity and backup-night requirement.
BEST BRIEF INCLUDES
- Application and installation country
- Road width, pole height and spacing
- Target wattage or illuminance
- Backup-night requirement and order quantity
