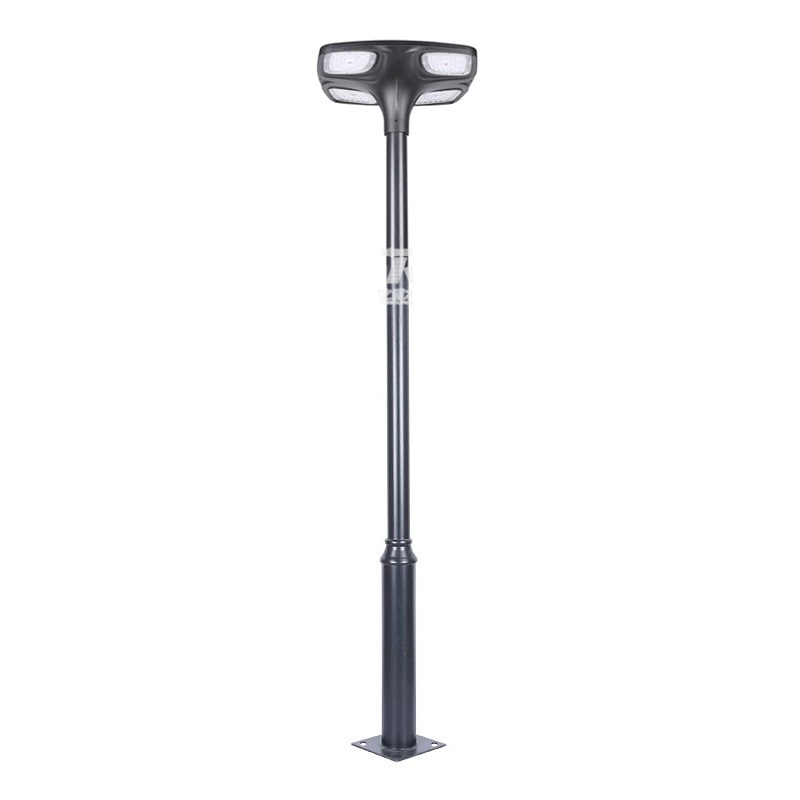

Modern Pole
Clean single-pole style for community roads and gardens.
SOLAR GARDEN LIGHT
SOLAR GARDEN LIGHT
Elegant outdoor lighting for parks and public landscapes.
A project-ready solar garden light range with die-cast aluminum structure, LiFePO4 storage, warm or neutral CCT and pole styles for public outdoor spaces.
- 10-30W
- Power range
- 1,500-4,500 lm
- Lumen range
- IP65 / IP66
- Protection
- 2.5-6 m
- Mounting height
Final battery, solar panel and lighting mode should be matched to local irradiation, application and backup-night requirement.
SYSTEM OVERVIEW
Engineered for dependable, low-maintenance outdoor illumination.
Solar garden lighting for parks, communities, courtyards and public landscapes, with decorative pole styles and project-ready energy sizing.
- 01
Solar charging
Panel size is selected around product type, working hours and local sunlight.
- 02
Battery reserve
LiFePO4 or lithium battery options support repeatable outdoor lighting programs.
- 03
Outdoor housing
IP-rated housing, optical diffuser and bracket structure are selected by application.
- 04
OEM/ODM support
Housing color, packaging, logo and control mode can be configured by project.
TECHNICAL DATA
Solar Garden Light configuration matrix.
Standard configurations are shown below. Final solar input, battery reserve and control profiles are engineered around installation and operating conditions.
| Parameter | 10W | 15W | 20W | 30W |
|---|---|---|---|---|
| System luminous flux | 1,500 lm | 2,250 lm | 3,000 lm | 4,500 lm |
| Mono solar panel | 12W | 18W | 25W | 35W |
| LiFePO4 battery | 3.2V 10Ah | 3.2V 15Ah | 3.2V 20Ah | 3.2V 30Ah |
| Mounting height | 2.5-3.5 m | 3-4 m | 3.5-5 m | 4-6 m |
MaterialDie-cast aluminum, aluminum pole, PC diffuser
CCT2700K-6500K
ControlLight control, time dimming, PIR optional
FinishPowder-coated outdoor finish
ApplicationParks, communities, courtyards, campuses
OEMColor, logo and packaging configurable
STYLE & APPLICATION VIEWS
A versatile design portfolio for diverse environments.
Multiple housings, mounting options and finishes support coordinated architectural and landscape applications.

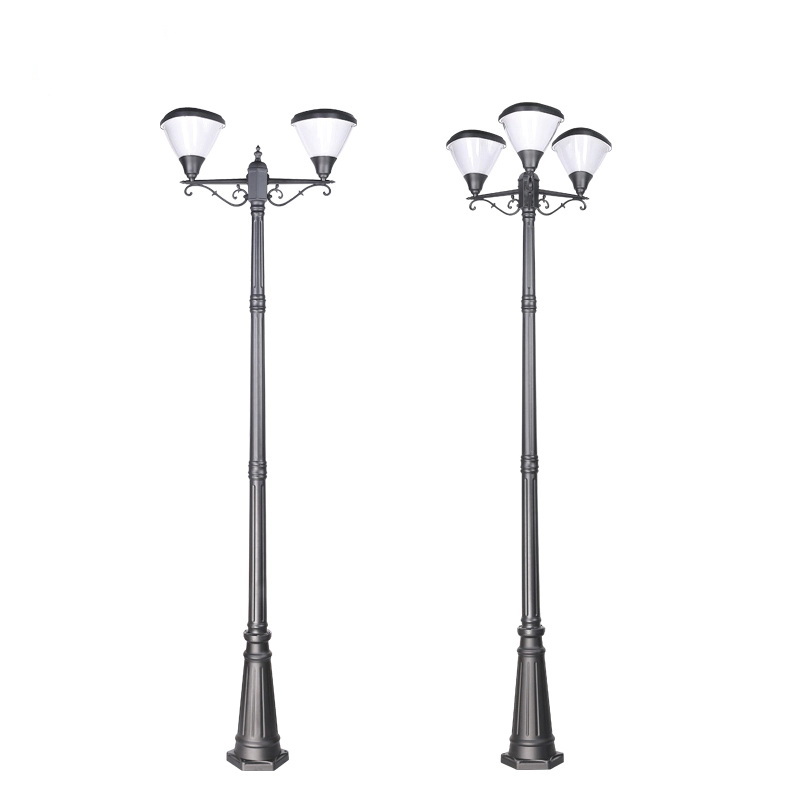

Double Head
Decorative two-head layout for parks and pedestrian areas.

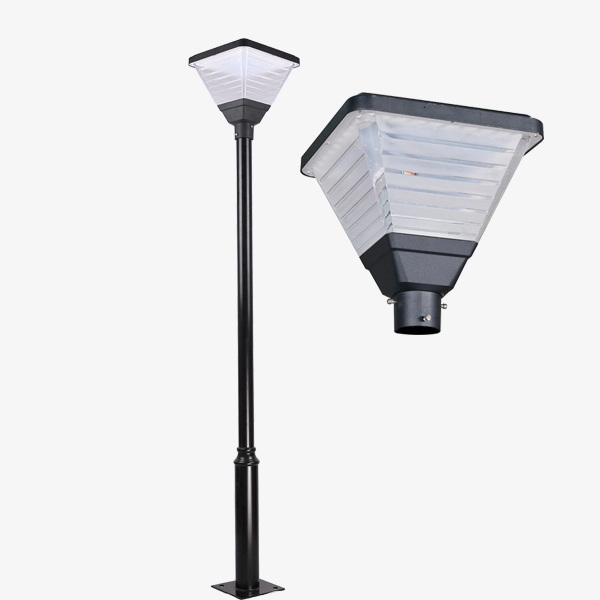

Park Pole
Simple pole-top lighting for public landscape projects.
Bollard Scene
Low garden ambience for landscape and pathway edges.

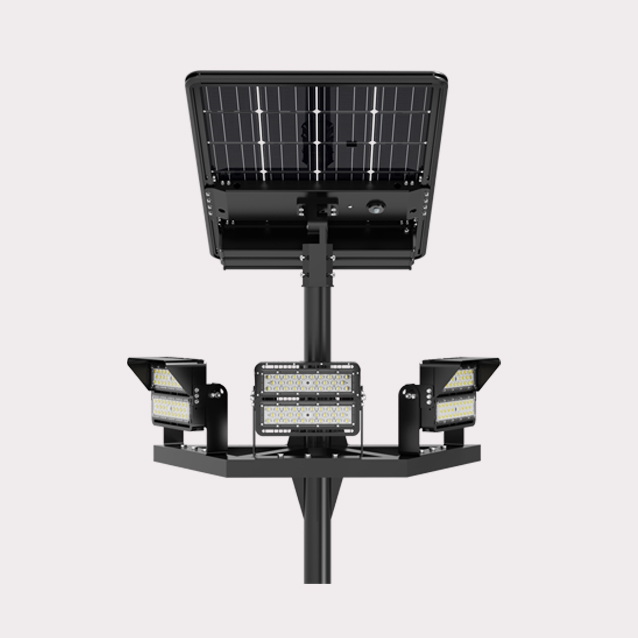

Multi-Head
Stronger visual identity for squares and scenic spaces.
APPLICATIONS
Purpose-built for real outdoor environments.
Match each product with the right application, installation context and lighting objective.
Parks
Decorative solar lighting for public green areas.
Communities
Pole styles for residential roads and outdoor spaces.
Courtyards
Comfortable ambience for hotels, villas and campuses.
Scenic areas
Off-grid lighting for landscaped visitor routes.
Public squares
Decorative lighting with lower wiring complexity.
Distributor programs
Repeatable models for overseas product portfolios.
TECHNICAL RESOURCES
Core product data for confident specification.
Access the standard datasheet or request a project-specific technical package.
PROJECT ENGINEERING
Project-specific configuration starts with site conditions.
Location, application, operating hours, lighting targets and quantity establish the engineering baseline.
PROJECT INPUTS
- Installation country and application
- Target wattage or brightness
- Working hours and backup nights
- Quantity, logo and packaging needs
